Unitech EA520


Unitech EA520

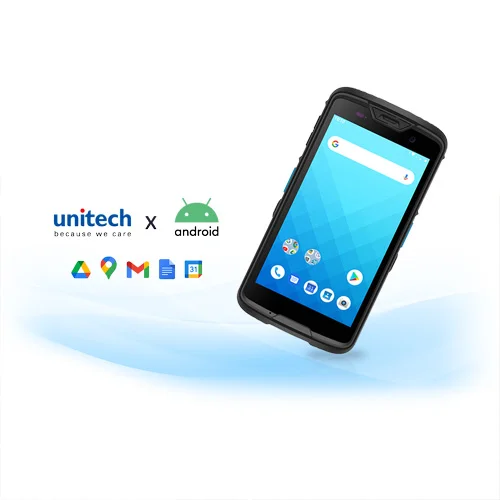

The Unitech EA520 is a versatile solution designed for various industries and applications. Powered by Android 11, it offers seamless performance and compatibility with a wide range of software. With its octa-core 2GHz processor and 4GB RAM, the EA520 ensures smooth operation even in demanding environments.

    Ideal For:
  • Shipping & Logistics
  • Hospitality
  • Logistics
  • Field Service
Operating System (OS)Android 11
CPUOcta-core 2GHz Processor
MemoryRAM: 4GB
Flash: 64GB
Languages SupportMultiple languages
DisplayScreen Size: 5.0” TFT-LCD HD (720 x 1280) color screen
Touch PanelGorilla Glass 3, Ultra sensitive capacitive touch screen, compatible with gloves and supports wet resistance
CameraFront Camera: 8MP
Rear Camera: 13MP with LED flash and auto-focus function

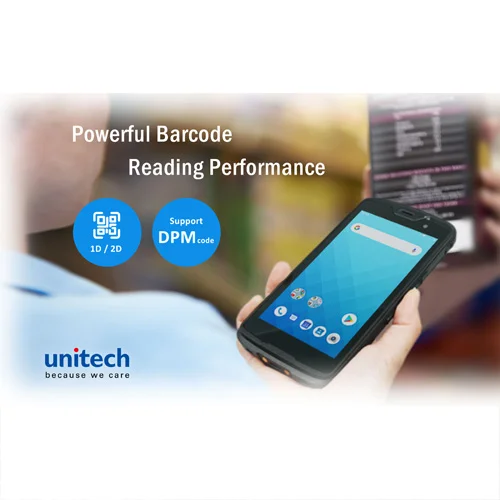

SymbologiesSupport all major 1D and 2D barcodes
RFIDHF RFID: Supports HF/NFC, Frequency 13.56Mhz, ISO14443 A/B, ISO15693, Felica(ISO/IEC18092), Mifare compliance
I/O InterfacesUSB: USB 2.0 (Type-C)
OTG: Yes, over USB Type-C
POGO PIN: Charging via cradle
SIM Slot: Dual SIM, support LTE + LTE
Expansion Slot: MicroSD, up to 256 GB
AudioOne speaker (1.5W / 95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones
Power SourceMain Battery: 3.85V 4250mAh Li-ion battery, Removable
CommunicationBluetooth®: Bluetooth® 5 supported
WLAN: 802.11 a/b/g/n/ac/d/e/h/i/j/k/r/v, 2.4G+5GHz, support fast roaming, VoWiFi, hotspot, Compliant with WFA, WPA/WPA2
WWAN: Global: 4G LTE FDD, TDD: B38/B39/B40/B41, 3G WCDMA: B1/B5/B8, 2G GSM: 850,900,1800,1900MHz
GPSAGPS, GPS, GLONASS, Beidou, Galileo
SensorsLight Proximity, Accelerometer, e-Compass, Gyroscope sensor
SoftwareMDM Software: SOTI, AirWatch, 42Gears, and MoboLink
EnclosureDimensions: 151.1 x 76.8 x 13.7 mm
Weight: 246g (with battery)

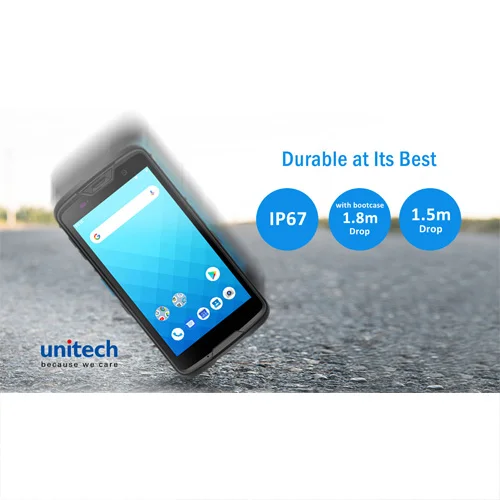

Drop Specification: 1.5m, 1.8m with boot case
Sealing: IP67
Tumble Test: 0.5m tumbles for 300 cycles / 600 drops
