Cognex DM8700

Handheld Wired

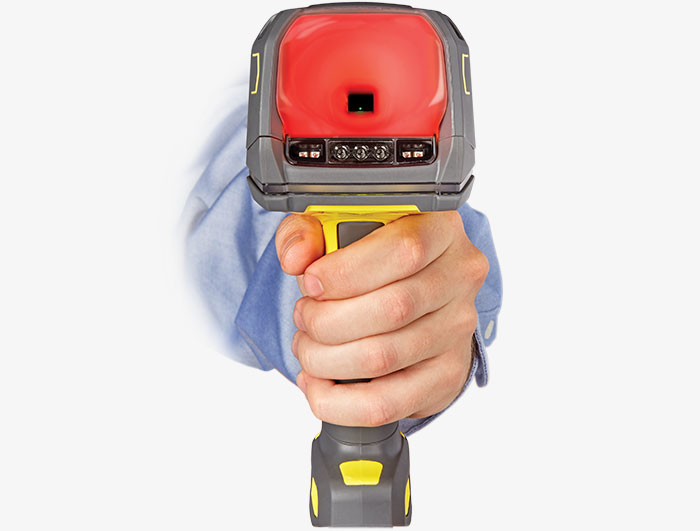

Cognex DM8700

The Cognex DataMan 8700 Series are rugged handheld barcode readers engineered for high-speed decoding in the toughest industrial conditions. With fast decoding, advanced lighting, and multiple connectivity options—including Wi-Fi and Bluetooth—these readers ensure optimal performance on direct part markings (DPMs) and printed labels even in oily, wet, or dusty environments.

  • Ultra-fast decoding (<150 ms) with advanced algorithms: 1DMax®, 2DMax®, Hotbars®, PowerGrid®
  • High-speed multi-core processing for maximum throughput
  • HDR Imaging & Integrated Lighting: diffuse, polarized, direct—optimized for shiny, curved, or dark surfaces
  • OLED display with on-device configuration, wireless signal, and battery indicators
  • High-capacity 5000mAh battery (wireless models); 125,000+ scans per charge
  • Seamless communication via USB, RS-232, Ethernet, Bluetooth, and Wi-Fi
  • Rugged IP67 housing, oil and water resistant, withstands 2.5 m drops and 5,000 tumbles


SpecificationDetails
Read Algorithms1DMax, 2DMax, Hotbars, PowerGrid
Image Resolution1.6 MP
Lighting (model dependent)Red diffuse, direct, polarized / White diffuse
DisplayOLED screen with LED ring, beeper, and vibration feedback
Lens OptionsLiquid lens (autofocus) or fixed: 6.2 mm, 8 mm, 12 mm
Minimum Code SizeUp to 2 mil (varies by model)
Connectivity OptionsUSB, RS-232, Ethernet (with protocols), Bluetooth, Wi-Fi
Communication ProtocolsTCP/IP, FTP, EtherNet/IP, PROFINET, MC protocol, Modbus TCP
Power Supply (Corded)5.5 V DC, 6 W Max (USB/RS-232); PoE (Ethernet)
Power Supply (Wireless)3.7 V, 5000 mAh Li-ion battery (125,000+ scans/charge)
Operating Temp.0°C to 40°C (32°F to 104°F)
Storage Temp.-40°C to 60°C (-40°F to 140°F)
Humidity95% max, non-condensing
Protection RatingIP67 (handheld); IP65 (base station)
Shock ResistanceMultiple 2.5 m drops on concrete; 5,000 tumbles from 1 m
Weight (Wireless)~479–548 g (battery included, varies by model)
Weight (Corded)~395–450 g + ~130 g for cable
