Fixed Industrial

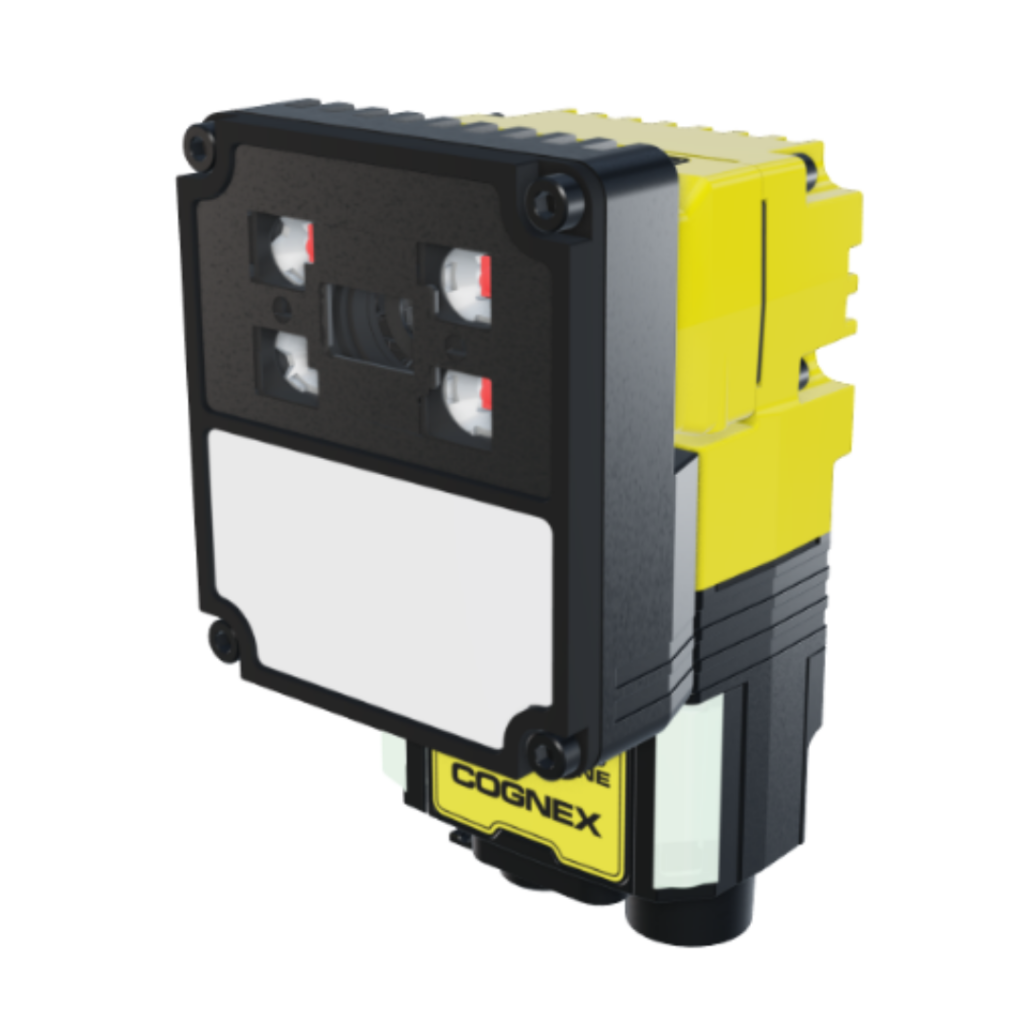

Cognex DM290
The Cognex DataMan 290 Series is an all-purpose, AI-powered industrial barcode reader designed to deliver unmatched performance in demanding applications. Equipped with advanced decoding algorithms, integrated lighting, and real-time AI tuning, it offers rapid deployment, ease of use, and reliable code reading even under challenging conditions.
- AI-powered decoding for damaged, low-quality, or difficult codes
- Integrated multi-light system for maximum code visibility
- Web-based UI with guided setup and real-time feedback
- Fast deployment with single-click tuning and positioning aid
- High-performance 1.6 MP sensor with global shutter
- Robust industrial design with IP67 rating
- Multiple communication options including Ethernet, RS232, and USB-C
- Versatile lens options: 6.2 mm or 16 mm with liquid lens
| Specification | Details |
|---|---|
| Sensor | 1/3″ CMOS, global shutter |
| Image Resolution | 1440 x 1080 pixels (1.6 MP) |
| Lens Options | 6.2 mm or 16 mm High-Speed Liquid Lens |
| Lighting | Multi-Purpose (4 red LEDs + 1 white diffuse), or Mini Light (4 red LEDs) |
| Electronic Shutter Speed | 43 µs (min) – 200 ms (max) |
| Acquisition Speed | Up to 45 Hz |
| User Interface | Web-based UI, AI tuning, positioning feedback |
| Discrete Inputs/Outputs | 2 opto-isolated inputs, 2 opto-isolated outputs |
| Power Supply | 24V DC ±10% |
| Power Consumption | ≤ 7.5 W |
| Operating Temperature | 0°C to 70°C (sensor) |
| Storage Temperature | -10°C to 60°C |
| Humidity | <95% non-condensing |
| Dimensions (example) | 87.6 mm × 54.3 mm × 21.7 mm (Multi-Light, 6.2 mm model) |
| Weight | 194g–234g depending on lens and lighting |
| Communication Interfaces | RS232, Ethernet (10/100 BASE-T), USB-C, keyboard compatible |
| Protocols Supported | TCP/IP, PROFINET, EtherNet/IP™, Modbus TCP, SLMP, CC-Link, FTP, NTP, SFTP |
| Protection Rating | IP67 |
| Certifications | CE, CB, NRTL, TÜV, KCC, BIS, RoHS |
